โมดูลแผงโซลาร์เซลล์ประสิทธิภาพสูง1000W 500W 400W 200W 100W โมดูลของตกแต่งงานปาร์ตี้บ้านตั้งแคมป์12V 24V Solar Panel Solar Cell

Flexible Solar Panel 1000W / 500W / 400W / 200W / 100W High Efficiency Durable Photovoltaic Solar Panels Module Diy kit Balcony Generation car Yacht home camping Curve Surface Easy to Install 12V 24V Solarpanel

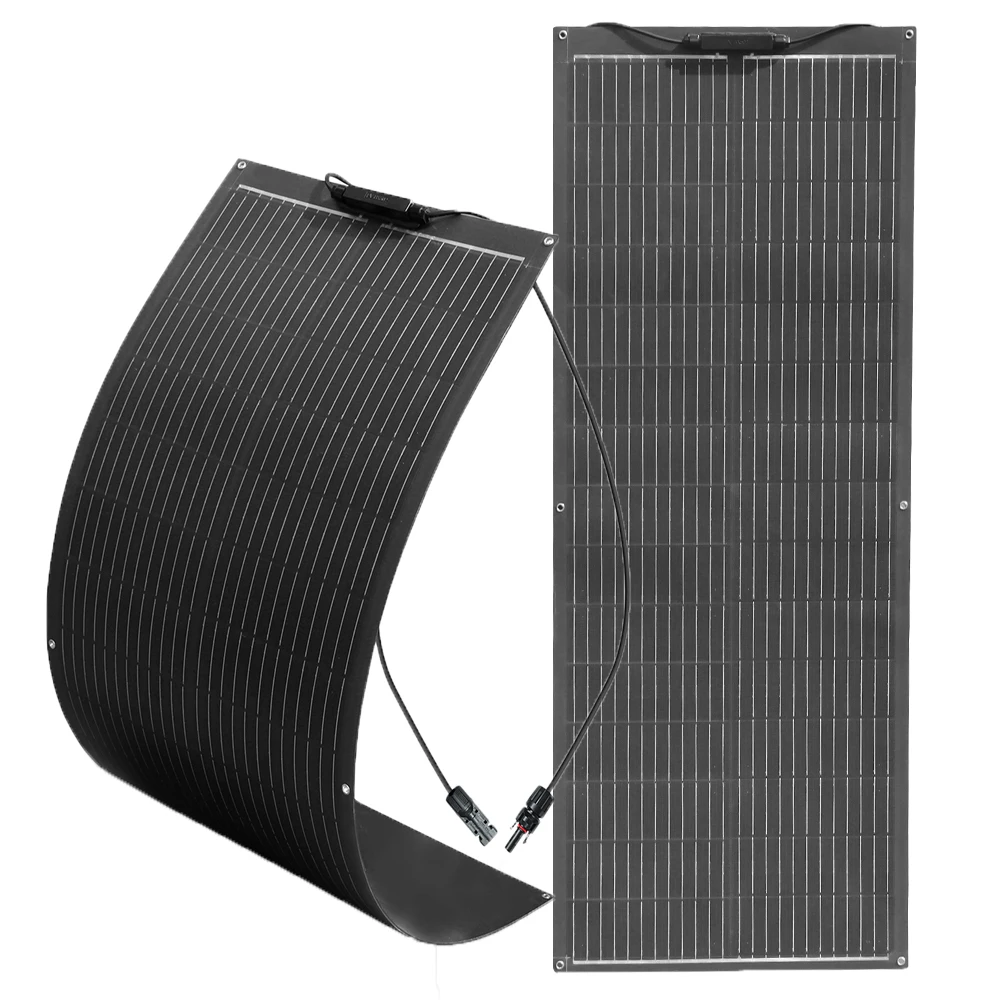

The flexible solar panel made of Mono cell with conversion rate of 23%. The weight is 4lb, which is 30% of the traditional solar panels. Lightweight,portable nature of flexible solar panels makes more effective for RVs, caravan,boats,trailers,cabin,etc. , easy to install, plug and play.

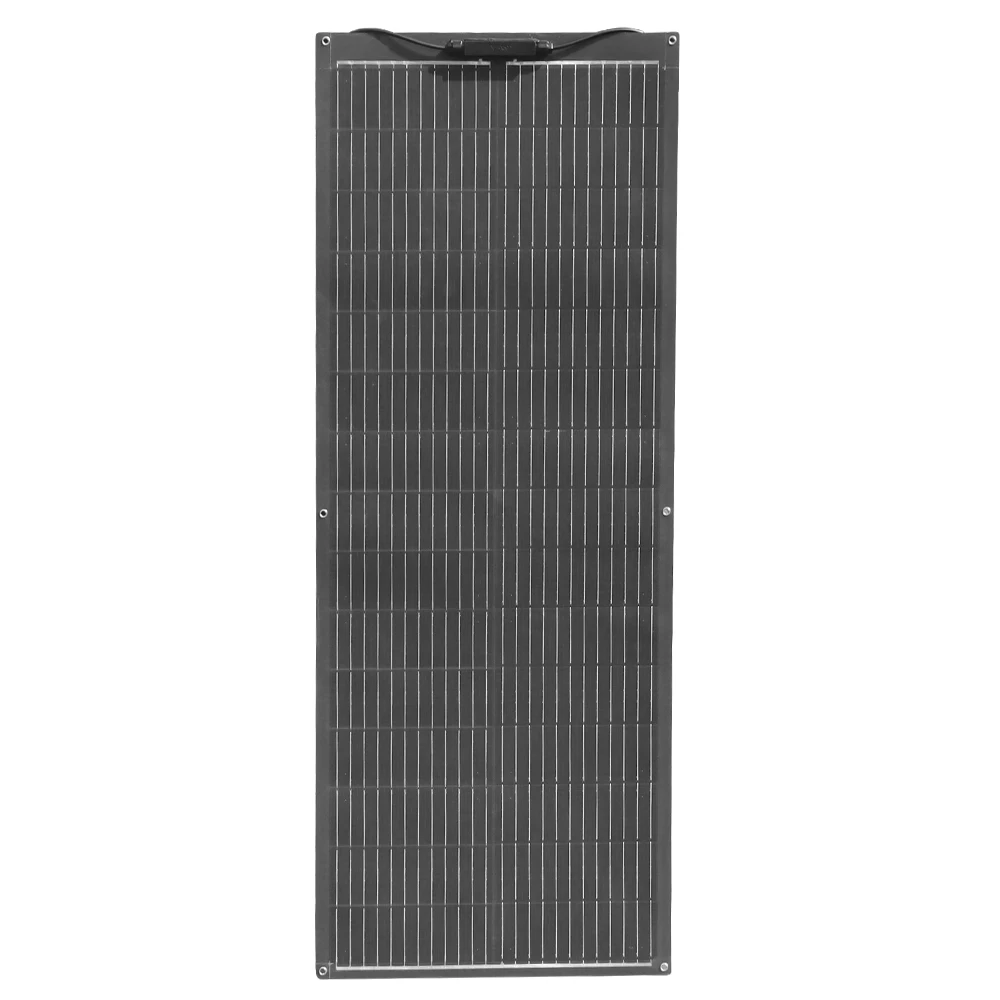

16.5V 100W Flexible solar panel Specification

Maximum power(Pmax) 100 Watt

Maximum system voltage 700V DC

Open circuit voltage(Voc) 19.8V

Short circuit current(Isc) 6.66A

Maximum power voltage(Vmp) 16.5V

Maximum power current(Imp) 6.06A

Weight 1.8kg/4.0lb

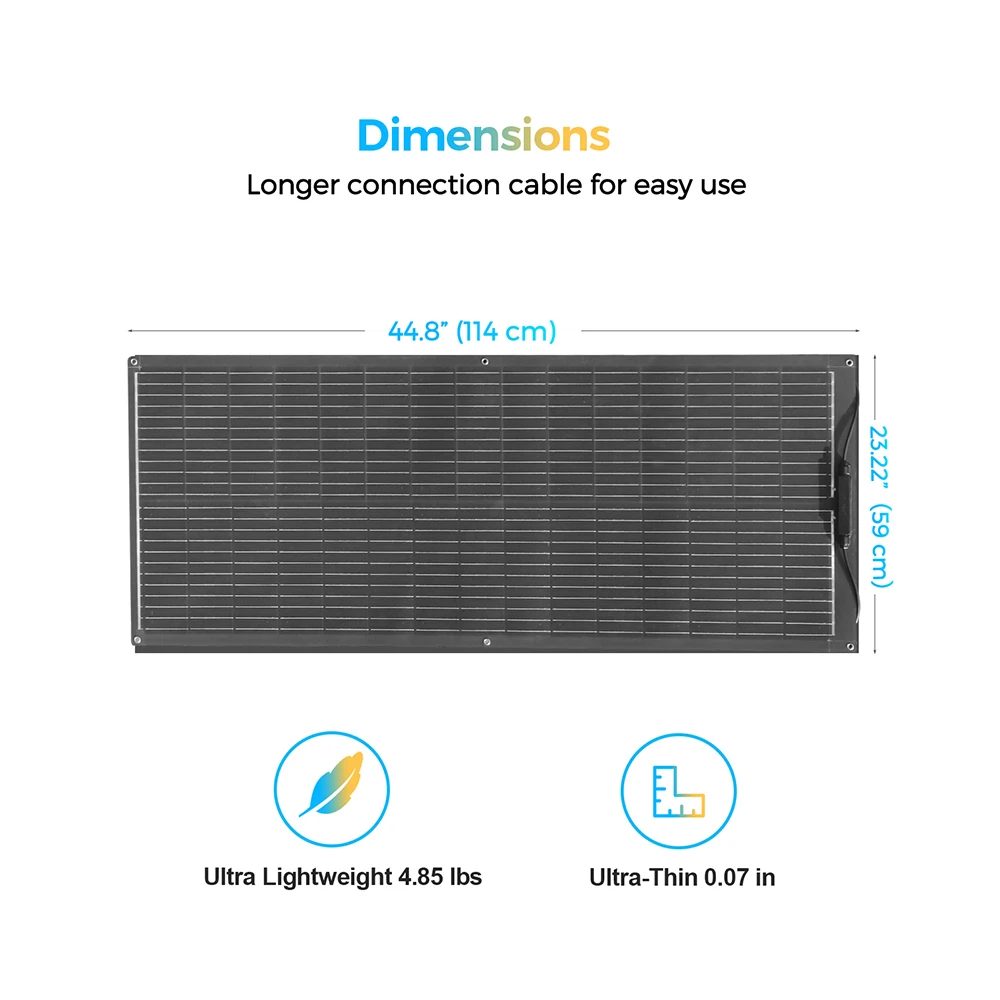

Size 1140X460X2.5mm / 44.88X18.11X0.098 inch
Cable length 90cm/10FT
Operating Temperature -45℃ to 80℃ /-49℉ to 176℉

Operating temperature(NOCT) 45 plus or minus 2 Celsius system

STC: lrradiance1000w/m2,Temperature 25 Celsius system, AM=1.5

Please note: If you test the solar panel, the solar panel must be tested under the sun. The solar panel is exposed to sunlight at different times and the temperature is different, which will affect the output power of the solar panel.

1 Years Warranty, 8-10 Year Lifetime
Minor reduction in efficiency under partial load conditions at 25degC: at 100 W/m2, 95%- (+/-5%) of the STC efficiency (1000 W/m2) is achieved.

Extra: We keep right to change the specification of the data, and there is about ±5%deviation for all specification, pls notice this point.

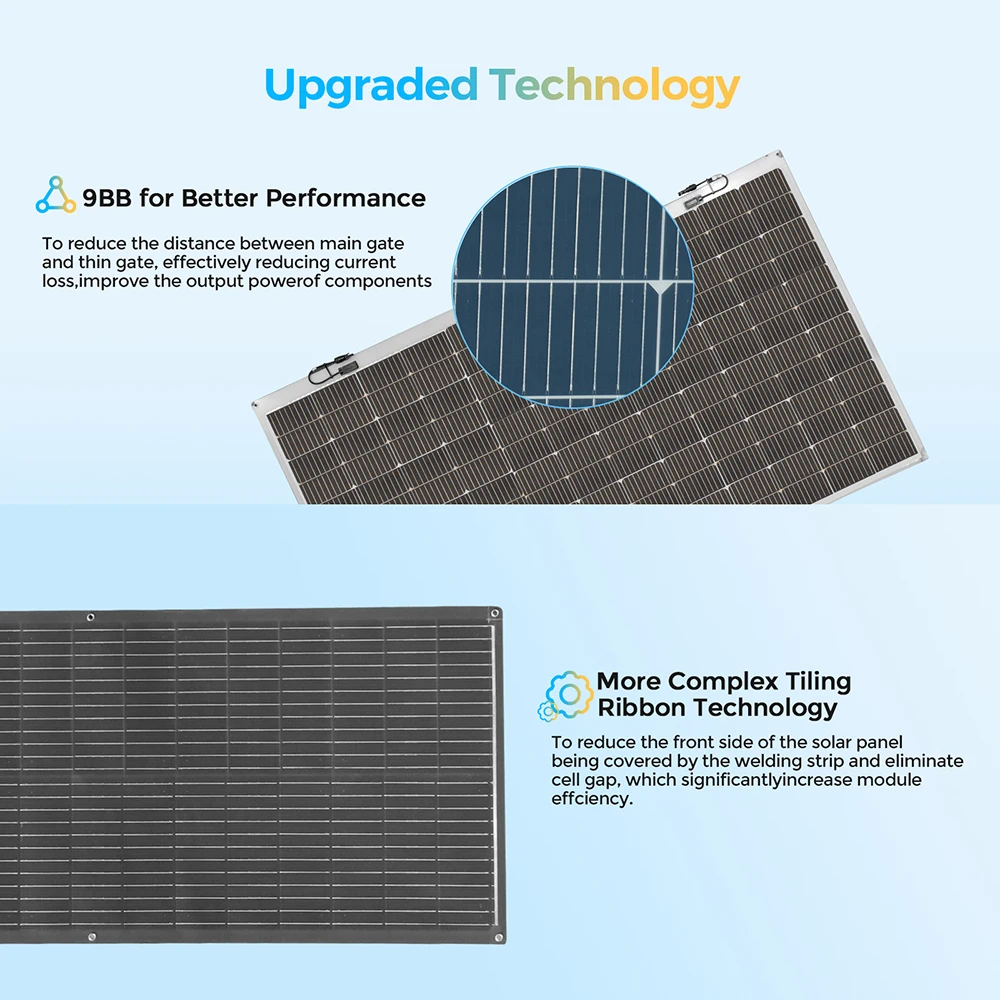

[Highly efficient]The solar panel uses high efficiency 210MM monocrystalline solar cells with a conversion efficiency of 23%-24%. Built-in bypass diode to better protect the solar panel.

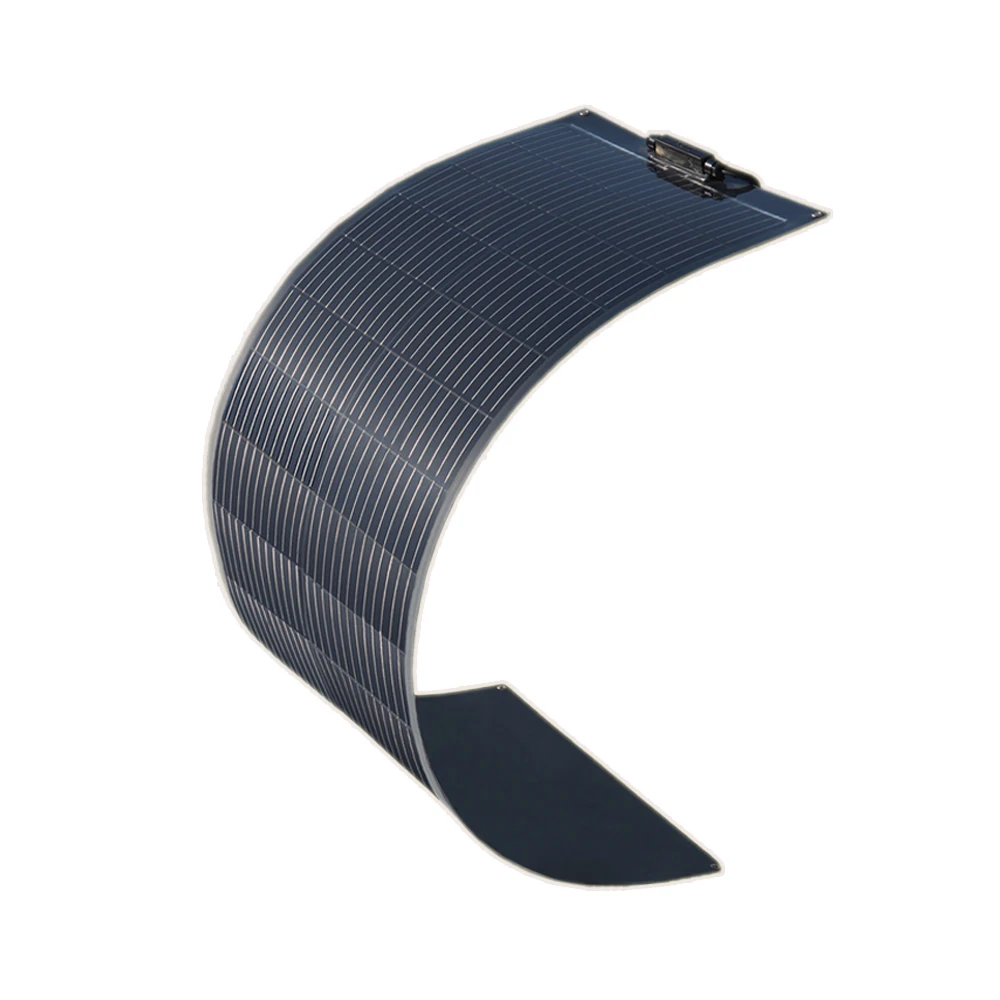

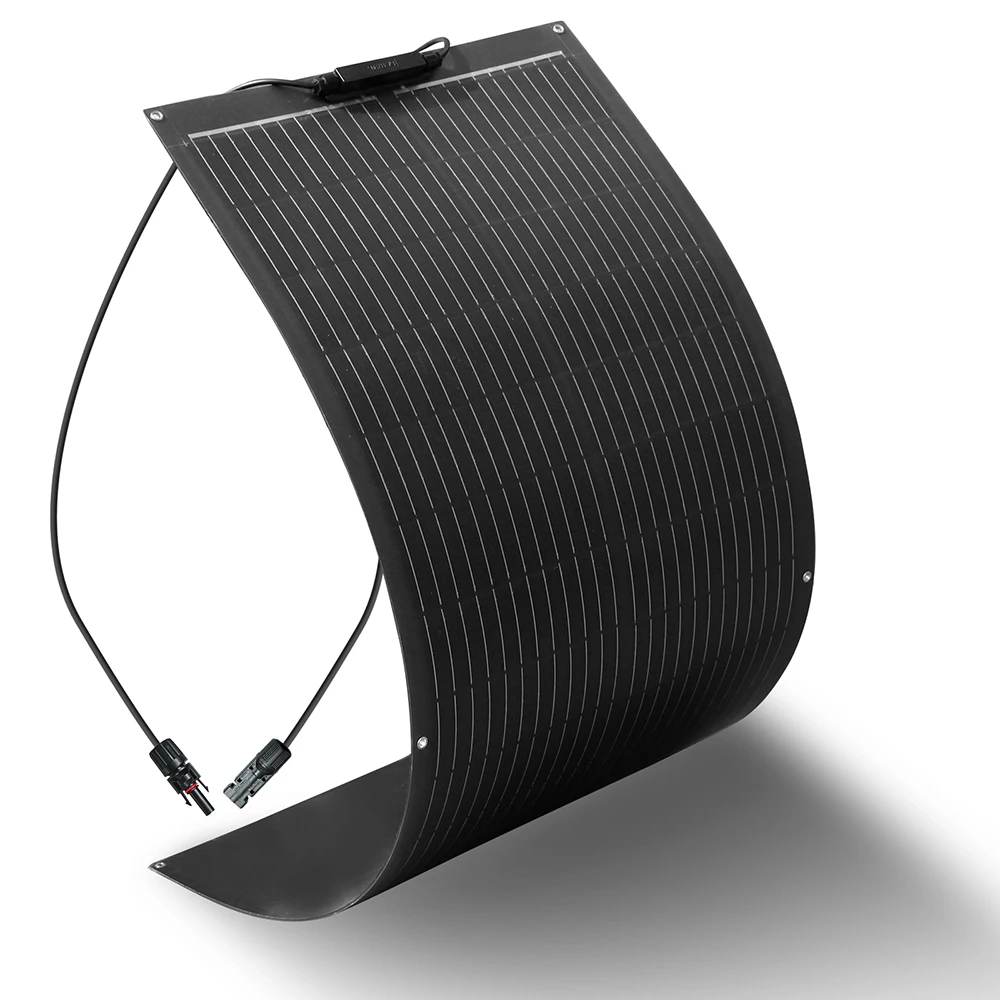

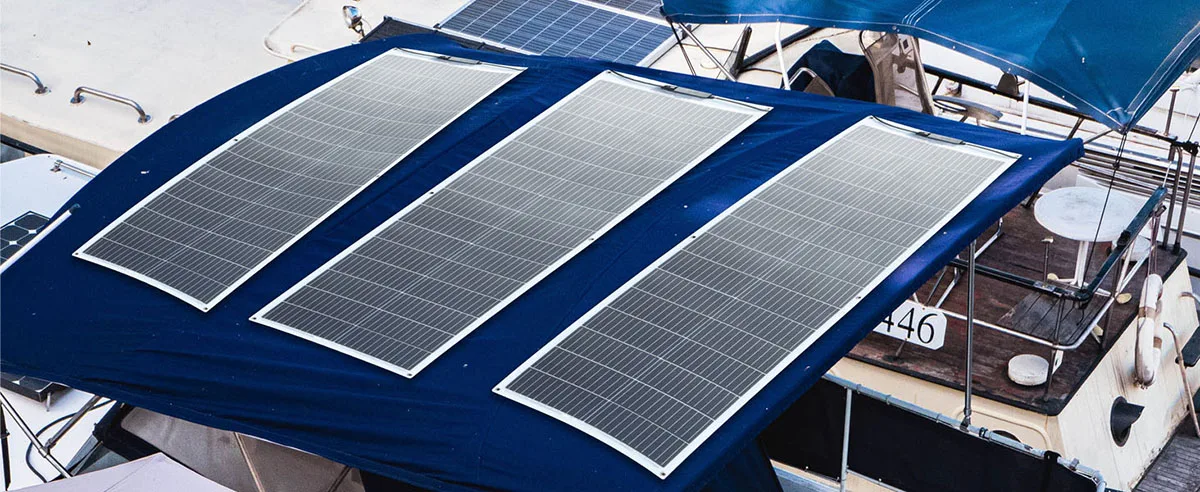

[Ultra-light and Flexible] A single solar panel weighs only 4.0 pounds and is only 0.098 inch thick. It can be easily picked up and carried. The solar panel be bent up to 260°. Ideal for mounting on RV ,roofs, campers, trailers, boats, cabins, tents, and other uneven surfaces.

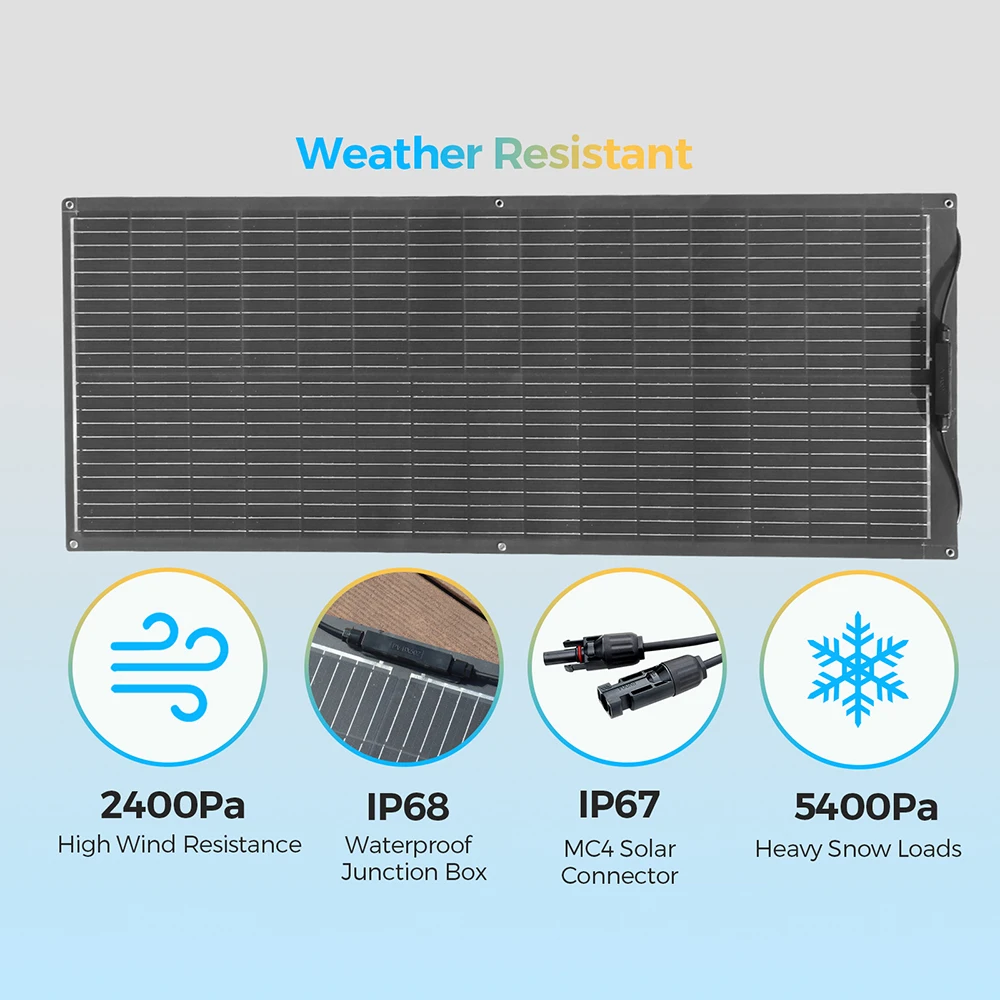

[Highly Durable] The solar panels come with an IP67 waterproof rating .Withstand heavy snow loads of up to 5400 Pa and high wind loads of up to 2400 Pa,suitable for outdoor weather.
[Functional] Solar panels are connected to a 12V-48V system depending on the battery, perfect solution for power supply. which can effectively deal with the difficult problems caused by power shortage and power outage.

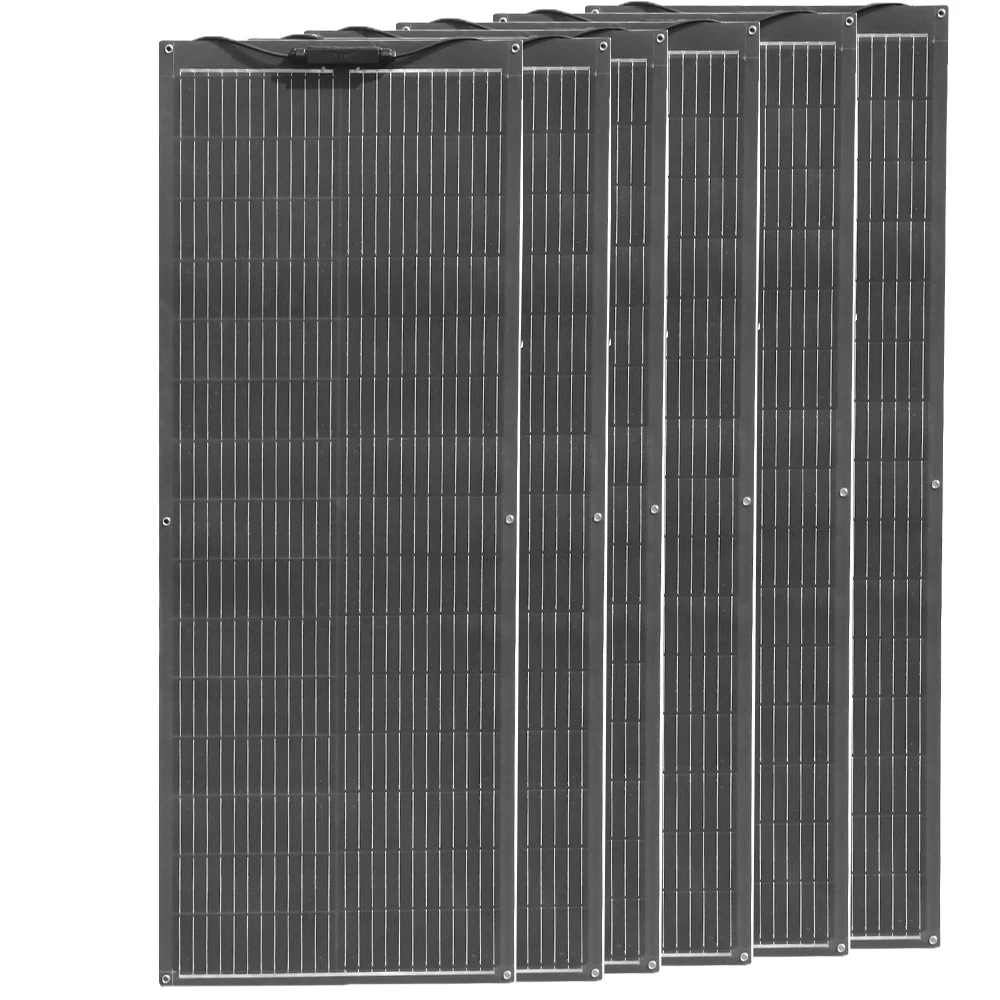

Package 1:100W solar panel

1 pcs 16.5V 100 Watt solar panel

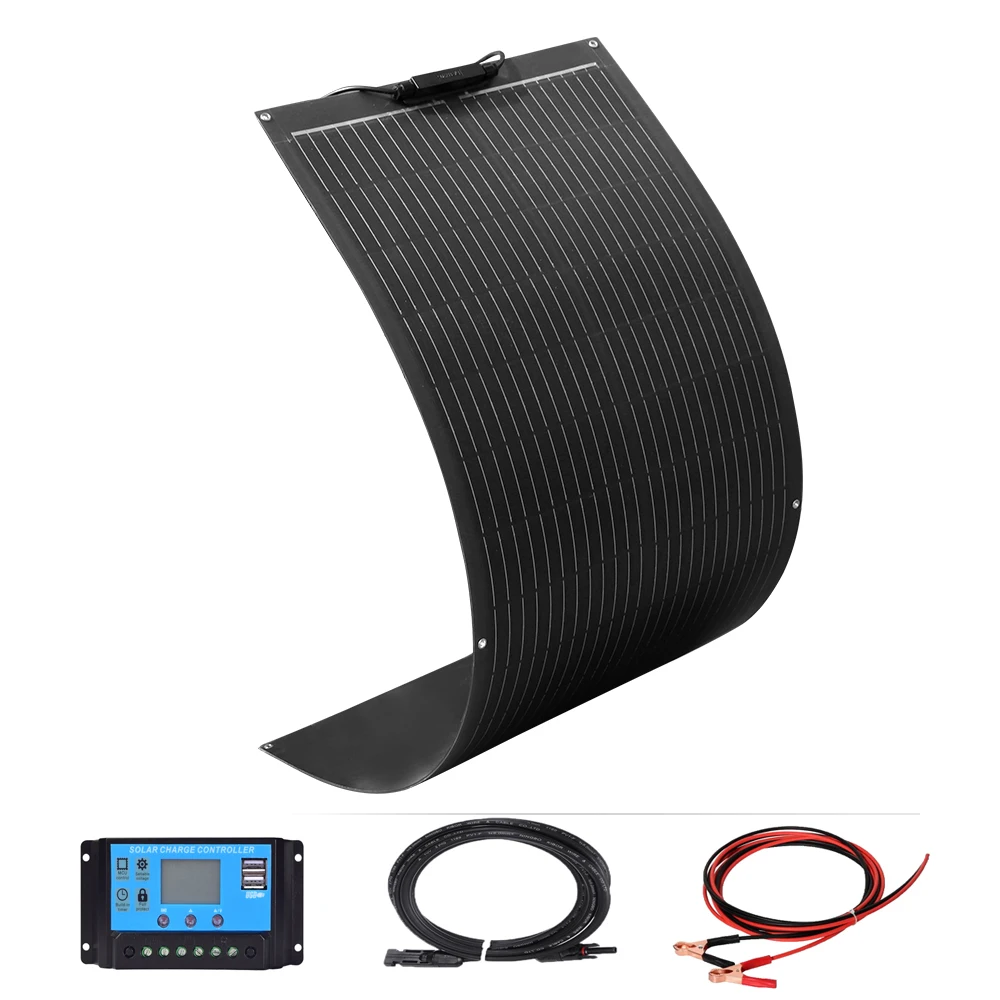

Package 2:12V 100W Solar Kit

1. 1 pcs 16.5V 100 Watt solar panel

2. 10A 12v/24v charge controller

3. 1 set 3m Extension cable with PV connector

4. 1 set 3m cable with alligator clip （connect to battery）

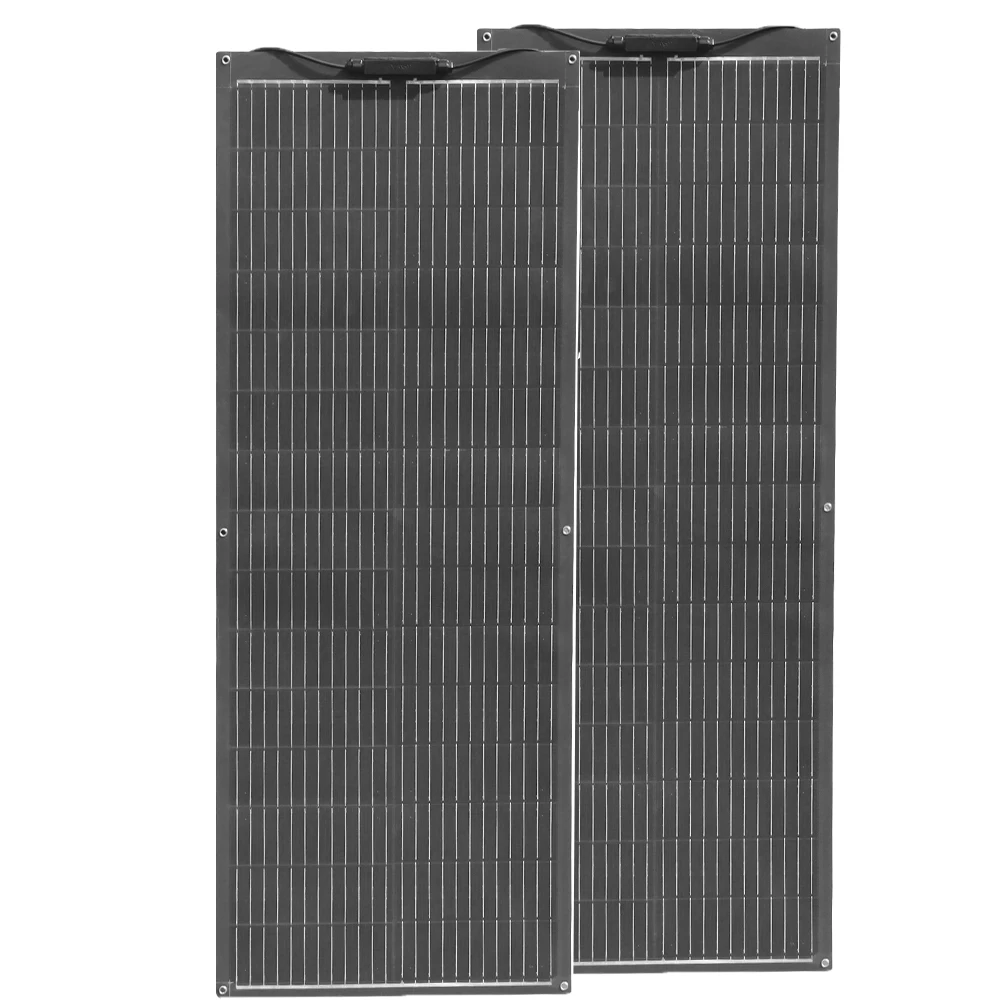

Package 3:200W solar panel

2 pcs 16.5V 100 Watt solar panel

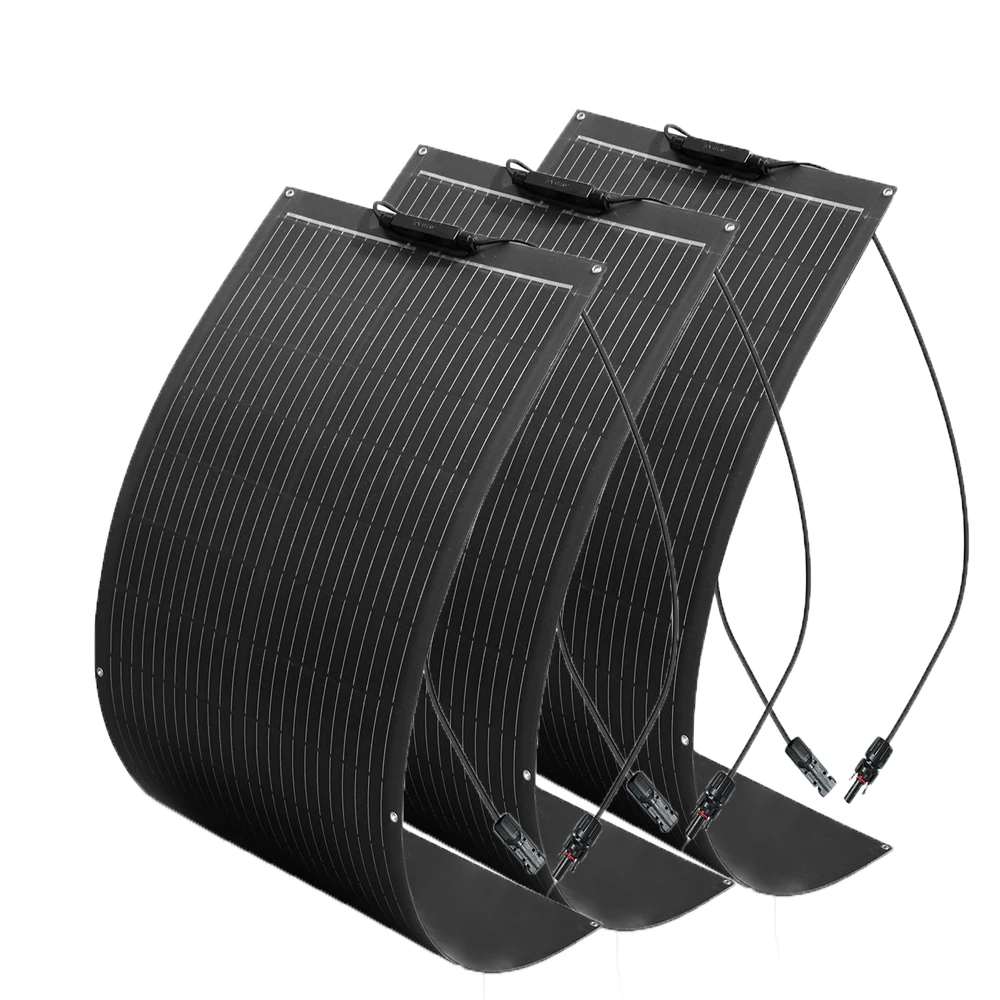

Package 4:300W solar panel

3 pcs 16.5V 100 Watt solar panel

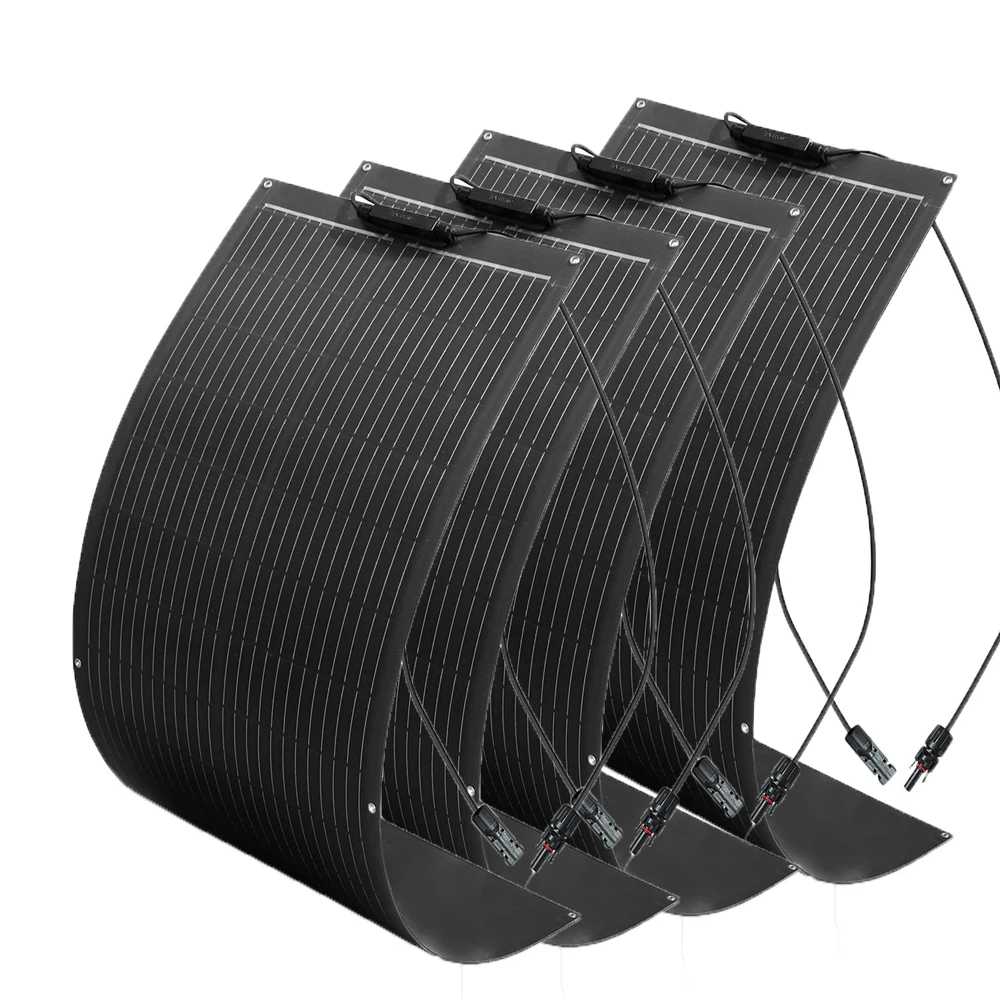

Package 5:400W solar panel

4 pcs 16.5V 100 Watt solar panel

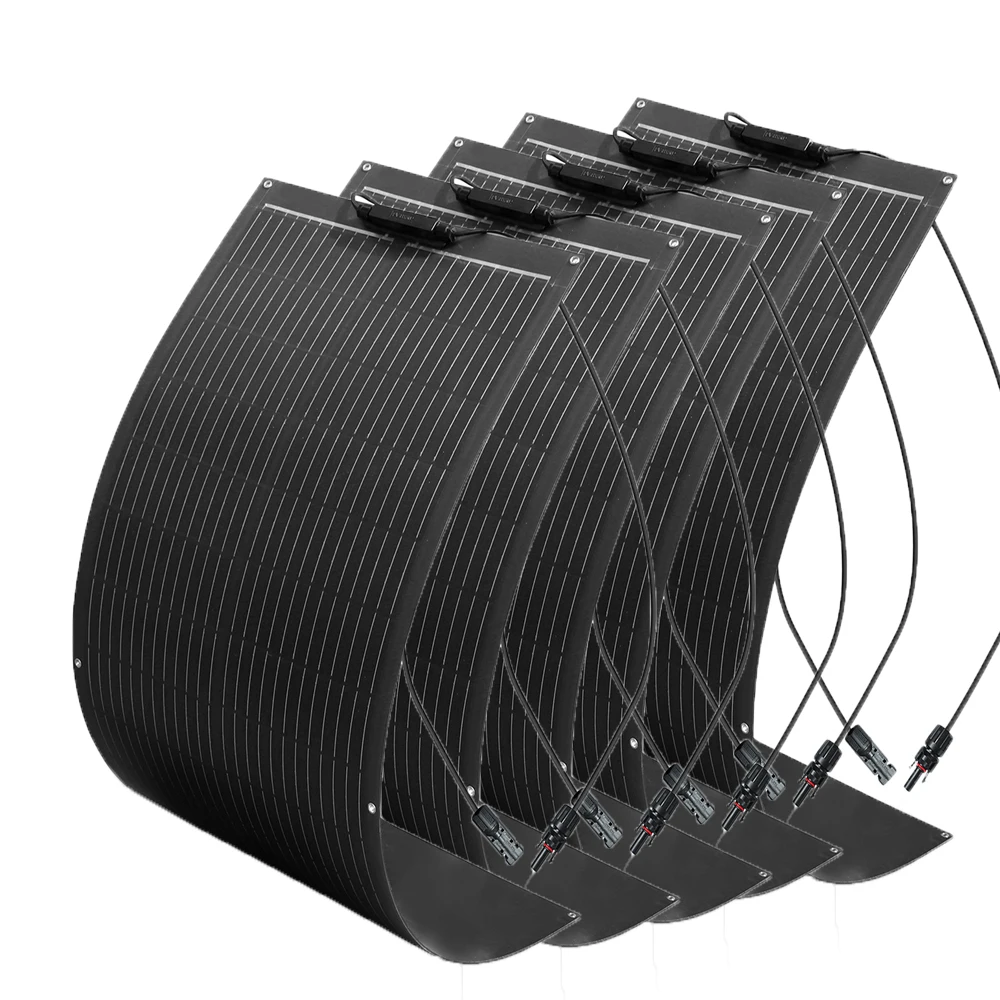

Package 6:500W solar panel

5 pcs 16.5V 100 Watt solar panel

Package 7:600W solar panel

6 pcs 16.5V 100 Watt solar panel

Package 8:800W solar panel

8 pcs 16.5V 100 Watt solar panel

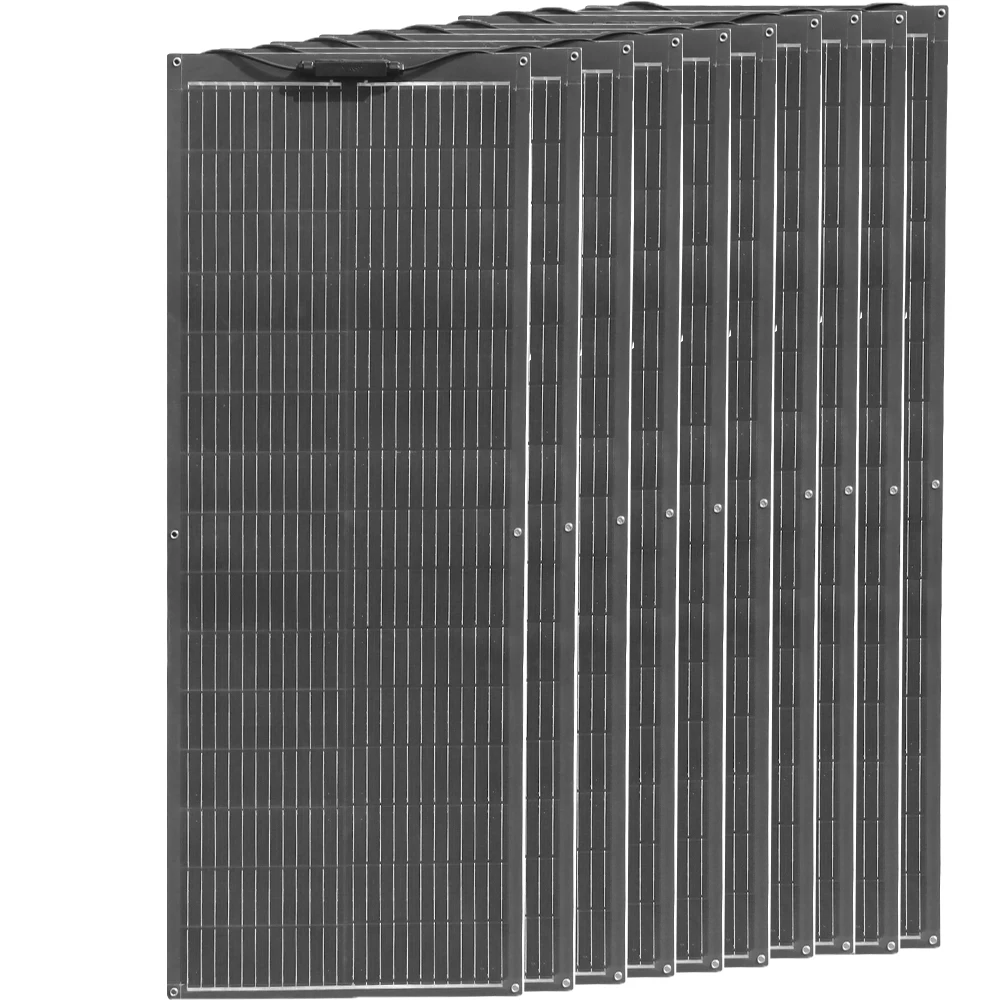

Package 9:1000W solar panel

10 pcs 16.5V 100 Watt solar panel

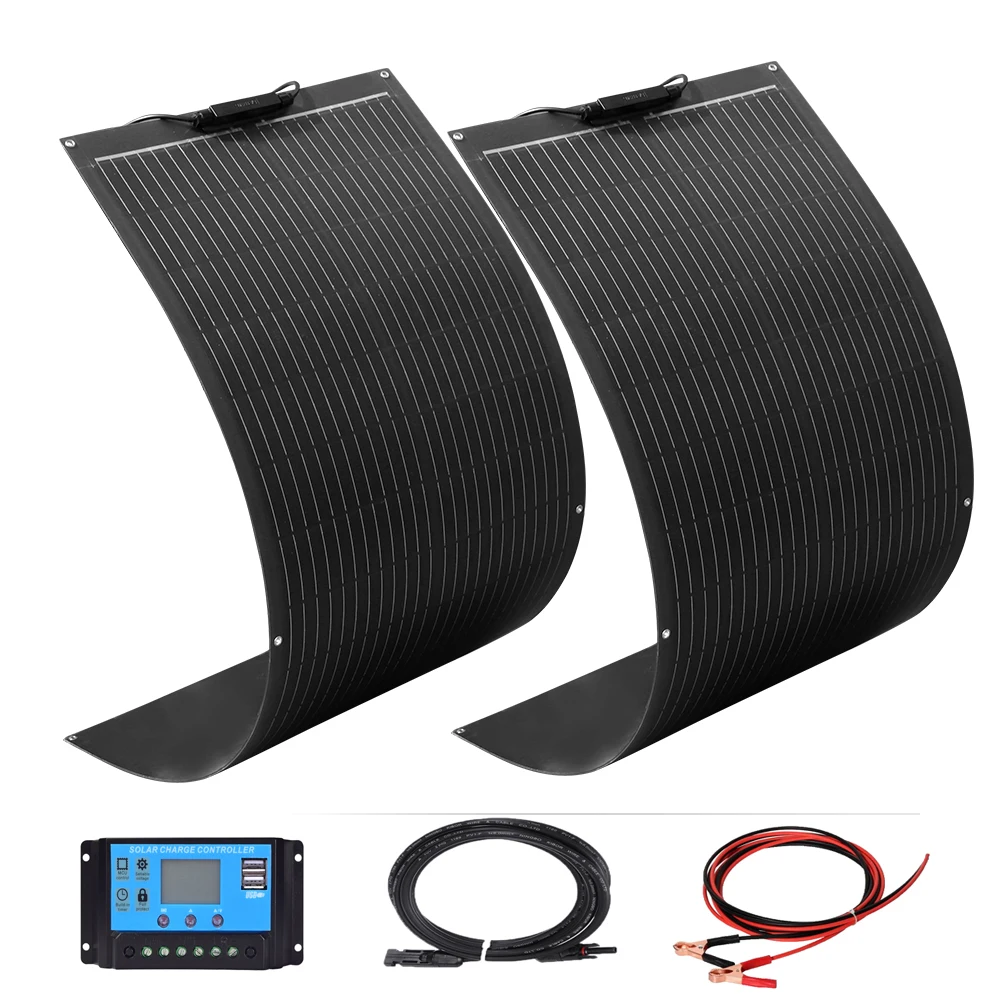

Package 10: 200W Solar Kit

1. 2 pcs 16.5V 100 Watt solar panel

2. 20A 12v/24v charge controller

3. 1 set 3m Extension cable with PV connector

4. 1 set 3m cable with alligator clip （connect to battery）

5. 2 in 1 adaptors

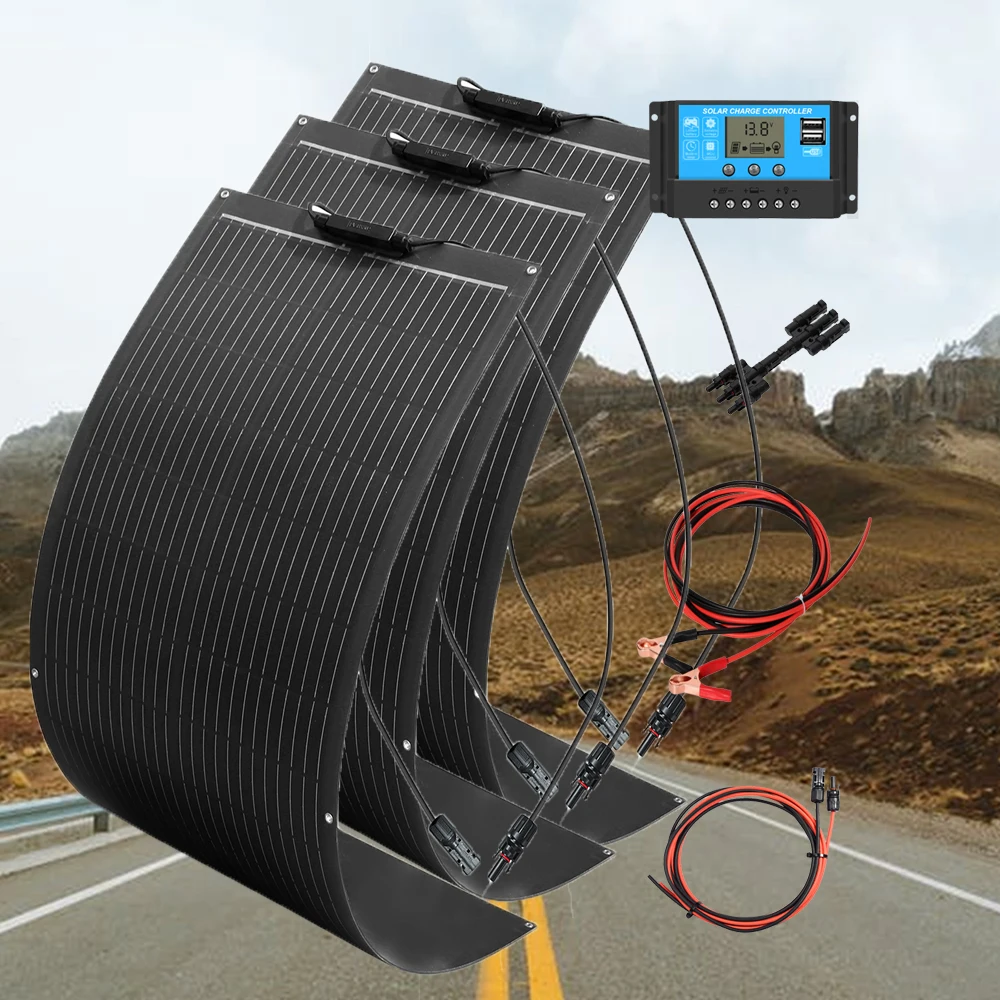

Package 11: 300W Solar Kit

1. 3 pcs 16.5V 100 Watt solar panel

2. 30A 12v/24v charge controller

3. 1 set Extension cable with PV connector

4. 1 set cable with alligator clip （connect to battery）

5. 3 in 1 adaptors

PET Solar Panel Features:

[Multiple Compatibility] Perfect solar power kit for a variety of off-grid applications like shed, cabin, gate opener, etc where 12V battery is used, as well as to charge and maintain AGM, Flooded, GEL, Deep Cycle and Seal Lead Acid, etc batteries in the car, Rv, boat, marine, trailer, camper, pump, etc.
[Light weight] Made of high efficient solar cells,withstand extreme weather conditions like UV, anti-rusting, IP65 waterproof.
[Intelligent Charging] Optimized 3-stages charging algorithm allows to charge the battery more efficiently, and prevent the battery from overcharge, over-discharge, over-voltage, short circuit, etc, fully protect battery and extend the lifetime.
[Visual Monitor] Visual bright LED indicators help to monitor battery conditions and better understand the status of solar panel and load. Exclusively equipped three working modes for load, allowing to set up the load to work under dusk to dawn automatically plus working hours according to personal requirement, very practical and useful.

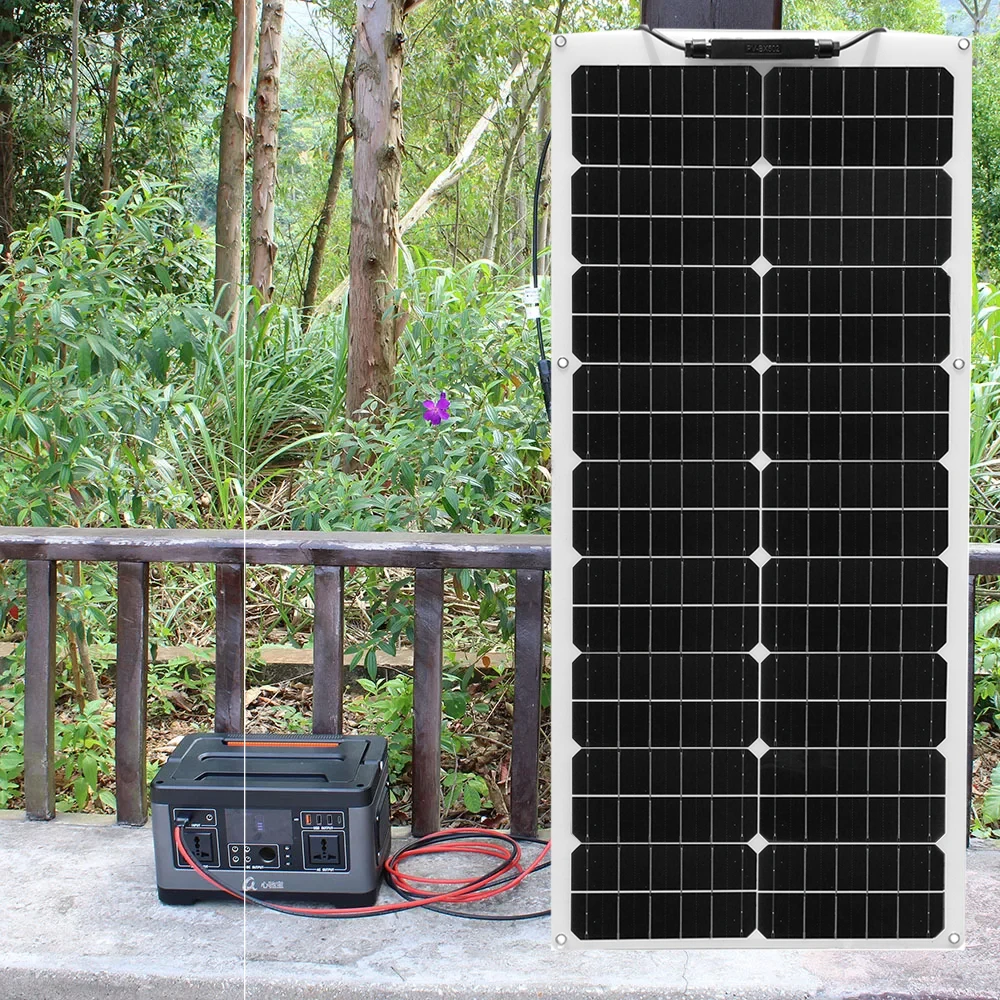

The solar panels can be directly connected to a portable battery with control function (note the voltage input required for the battery)

Off-grid solar panel system: solar panels need to be configured with a controller and batteries to be used together.

Safety Instructions:

1.Make sure your battery has enough voltage for the controller to recognize the battery type before first installation.

2.The battery cable should be as short as possible to minimize loss.

3.Please note that your controller is suitable for your battery type!

4.The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.

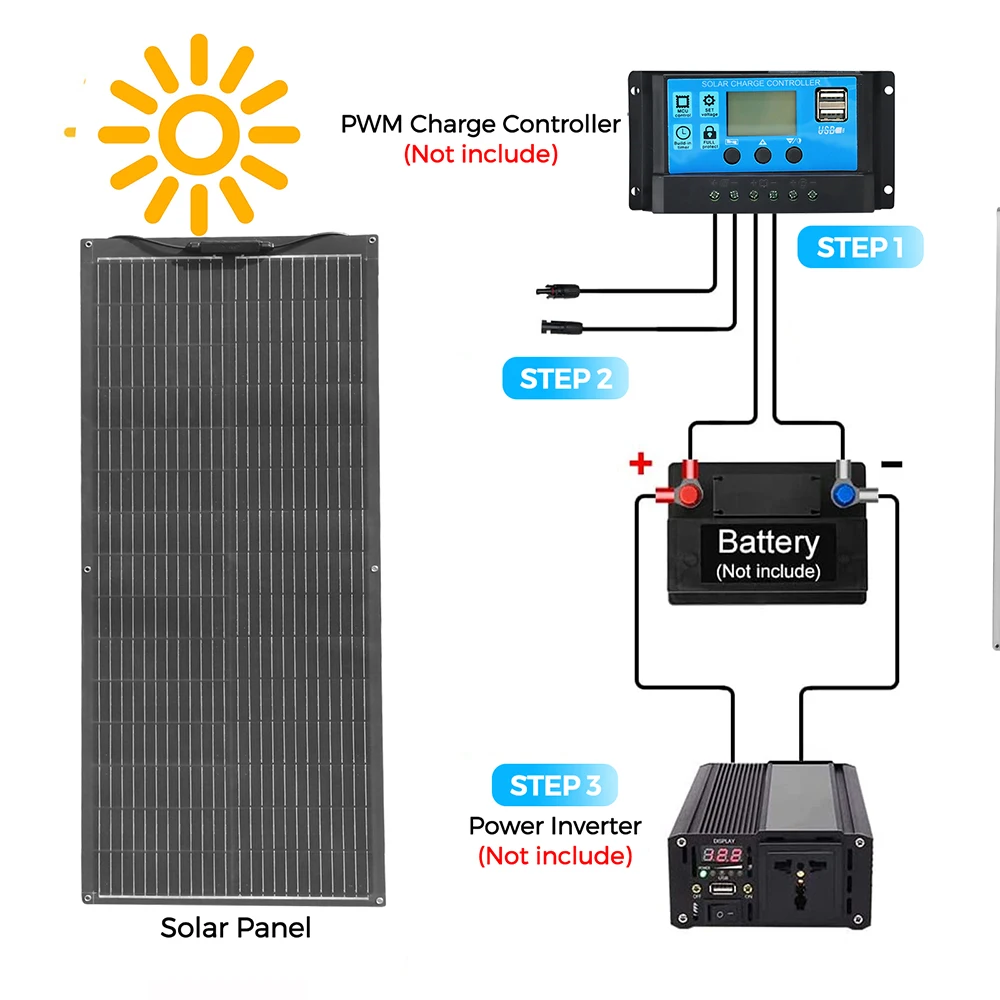

System Connection:

1.Connect the battery to the charge regulator – plus and minus.it will show 1 ,if it detects 12V battery, 2 if it detects 24V battery.

2.Connect the photovoltaic module to the regulator – plus and minus.

3. Connect the consumer to the charge regulator – plus and minus.

By-pass Diodes are pre-installed in junction box and a pair of 2.5MM2 cables with connectors comes with the panel automatically.

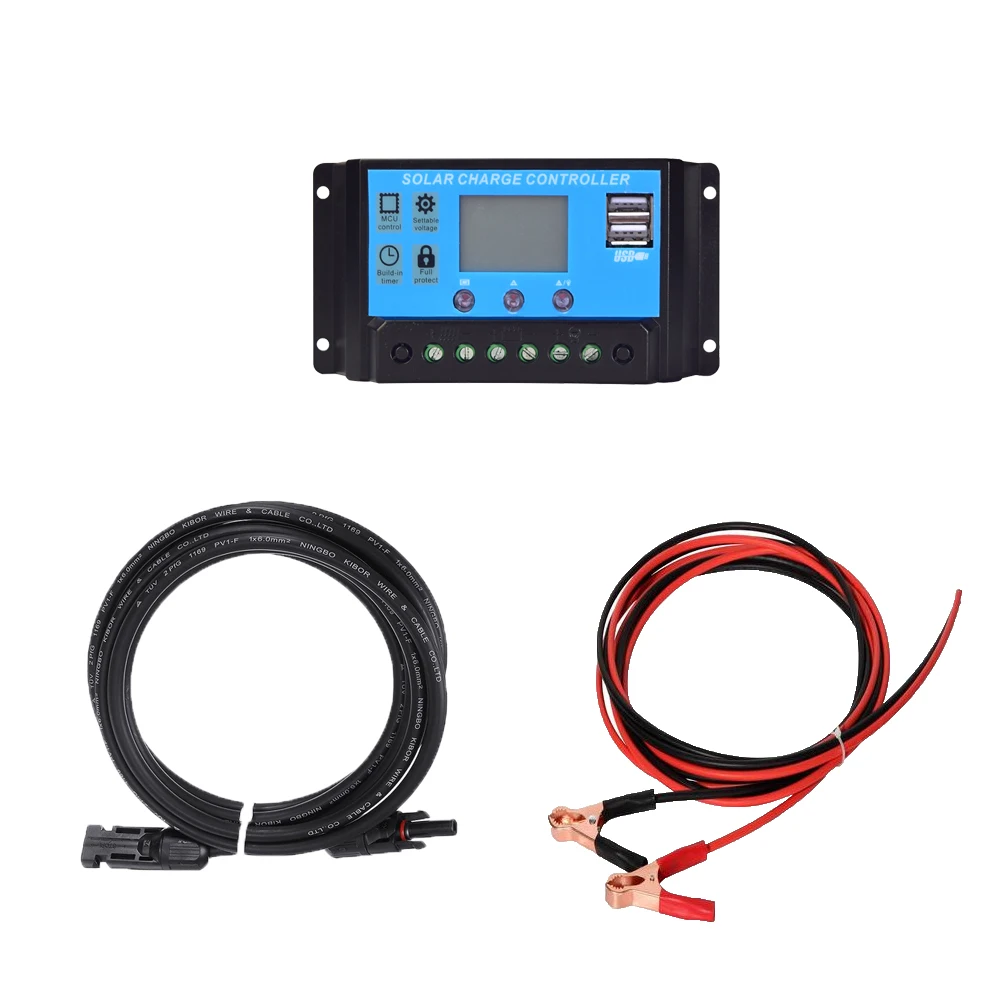

PWM Solar Controller

3 Controller connection instructions
a Before connecting the solar panel, please connect the controller to the battery first. Connecting the solar panel without connecting the battery may cause the controller to burn out and fail to display.

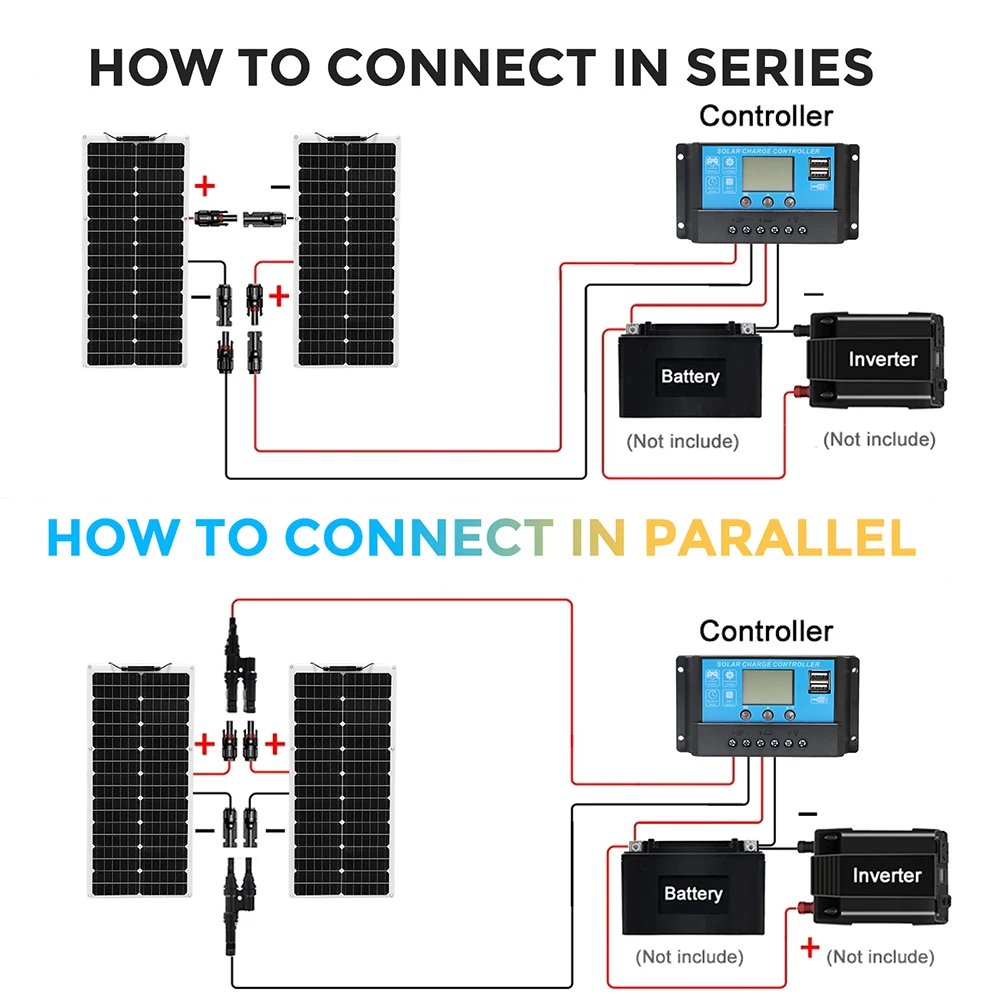

b After the controller is connected to the storage battery, connect the above-mentioned series or parallel solar panels to the controller through the transfer cable.
c Finally, connect the required DC load to the load end of the controller. If the load does not work, press the third button of the controller.
d According to the controller manual, adjust the parameters you need.

4 Precautions for installation of solar system

a When connecting this solar system, first connect the controller to the battery, and then connect the solar panel. Do not reverse the connection order.
b Please install the controller in a well-ventilated area such as indoors or shadows to avoid exposure of components and prevent water from entering the controller.
c The total power of the solar panel and DC load cannot be greater than the rated power of the controller (voltage × current), otherwise there may be a risk of burning the controller.
d The inverter cannot be connected to the controller, but must be connected to the battery.
e After installation, check whether all line connections are tight to avoid the danger of heat accumulation due to virtual connection.
f The positive and negative poles of the solar panel in the same series connection cannot be short-circuited to prevent damage to the solar panel.
g The positive and negative poles of the controller and battery should be checked clearly. Do not connect the positive and negative poles in reverse.
